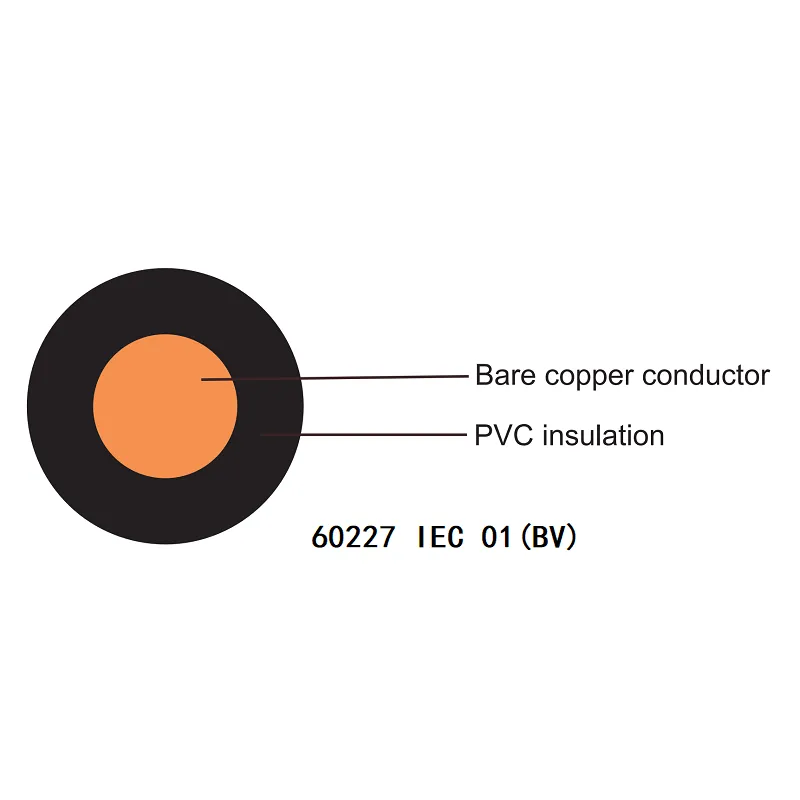

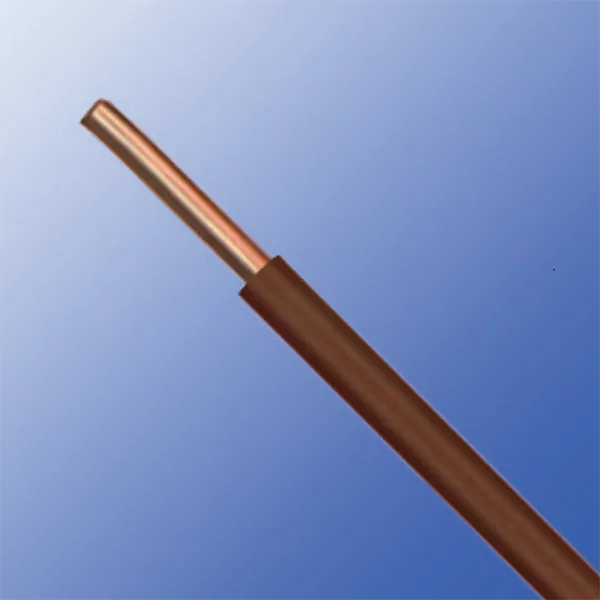

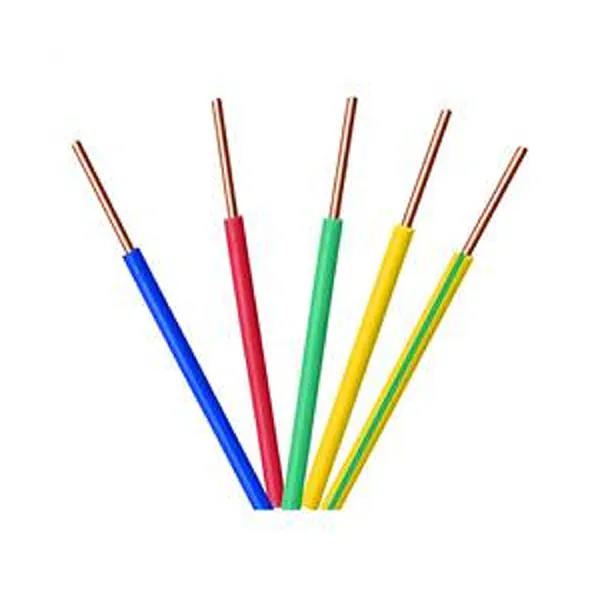

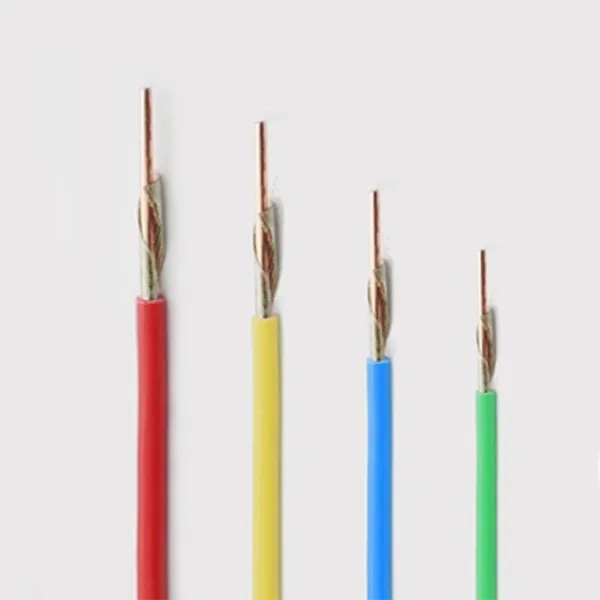

Tá Cábla Aonair Croí PVC Beida IEC 60227 comhdhéanta de sheoltóir copair T1R agus ciseal inslithe PVC saor ó luaidhe, ag cloí le caighdeán IEC, caighdeán GB, caighdeán na Breataine, etc. Tá an cábla deimhnithe CE agus tá airíonna fisiceacha leictreacha agus meicniúla den scoth aige. De réir riachtanais an chustaiméara, tá na cáblaí seo faoi réir tástála iomadú lasair aonair IEC 60332-1 nó tástáil iomadú lasair IEC 60332-3 bundle (catagóir A, B, C, D).
|
Cineál |
Seoltóir |
Insliú |
Tréithe Leictreach |
|||
|
Ceantar Ainmniúil |
Struchtúr an Seoltóra |
Tiús Insliú |
Trastomhas Foriomlán |
Friotaíocht Seoltóra ag 20 ℃ Max |
||
|
(mm) |
||||||
|
mm |
Uimh./mm |
mm |
Min |
uas |
Ω／km |
|
|
60227IEC05 60227IEC05(BV) |
0.5 |
1/0.80 |
0.6 |
1.9 |
2.3 |
39.0 |
|
0.75 |
1/0.97 |
0.6 |
2.1 |
2.5 |
26.0 |
|
|
1 |
1/1.13 |
0.6 |
2.2 |
2.7 |
19.50 |
|
|
60227IEC06 60227IEC06(RV) |
0.5 |
16/0.20 |
0.6 |
2.1 |
2.5 |
39.00 |
|
0.75 |
24/0.20 |
0.6 |
2.2 |
2.7 |
26.00 |
|
|
1 |
32/0.20 |
0.6 |
2.4 |
2.8 |
19.50 |
|
|
Cineál |
Seoltóir |
Seoltóir Inslithe |
Tréithe Leictreach |
|||
|
Ceantar Ainmniúil |
Struchtúr an Seoltóra |
Tiús Insliú |
Trastomhas Foriomlán |
Friotaíocht Seoltóra ag 20 ℃ Max |
||
|
(mm) |
||||||
|
mm |
Uimh./mm |
mm |
Min |
uas |
Ω／km |
|
|
60227IEC01 60227IEC01(BV) |
1.5 |
1/1.38 |
0.7 |
2.6 |
3.2 |
12.1 |
|
2.5 |
1/1.78 |
0.8 |
3.2 |
3.9 |
7.41 |
|
|
4 |
1/2.25 |
0.8 |
3.6 |
4.4 |
4.61 |
|
|
6 |
1/2.76 |
0.8 |
4.1 |
5 |
3.08 |
|
|
1.5 |
7/0.52 |
0.7 |
2.7 |
3.3 |
12.1 |
|
|
2.5 |
7/0.67 |
0.8 |
3.3 |
4 |
7.41 |
|
|
4 |
7/0.84 |
0.8 |
3.8 |
4.6 |
4.61 |
|
|
6 |
7/1.03 |
0.8 |
4.3 |
5.2 |
3.08 |
|
|
10 |
7/1.32 |
1.0 |
5.6 |
6.7 |
1.83 |
|
|
16 |
7/1.67 |
1 |
6.4 |
7.8 |
1.15 |
|
|
25 |
7/2.10 |
1.2 |
8.1 |
9.7 |
0.727 |
|
|
35 |
7/2.47 |
1.2 |
9 |
10.9 |
0.524 |
|
|
50 |
19/1.75 |
1.4 |
10.6 |
12.8 |
0.387 |
|
|
70 |
19/2.10 |
1.4 |
12.1 |
14.6 |
0.268 |
|
|
95 |
19/2.48 |
1.6 |
14.1 |
17.1 |
0.193 |
|
|
120 |
37/2.00 |
1.6 |
15.6 |
18.8 |
0.153 |
|
|
150 |
37/2.22 |
1.8 |
17.3 |
20.9 |
0.124 |
|
|
185 |
37/2.48 |
2 |
19.3 |
23.3 |
0.0991 |
|
|
240 |
61/2.22 |
2.2 |
22 |
26.6 |
0.0754 |
|
|
60227IEC02 60227IEC02(RV) |
1.5 |
30/0.24 |
0.7 |
2.8 |
3.4 |
13.3 |
|
2.5 |
49/0.24 |
0.8 |
3.4 |
4.1 |
7.98 |
|
|
4 |
56/0.29 |
0.8 |
3.9 |
4.8 |
4.95 |
|
|
6 |
83/0.29 |
0.8 |
4.4 |
5.3 |
3.30 |
|
|
10 |
74/0.40 |
1.0 |
5.7 |
6.8 |
1.91 |
|
|
16 |
117/0.40 |
1 |
6.7 |
8.1 |
1.21 |
|
|
25 |
182/0.40 |
1.2 |
8.4 |
10.2 |
0.78 |
|
|
35 |
256/0.40 |
1.2 |
9.7 |
11.7 |
0.554 |
|
|
50 |
367/0.40 |
1.4 |
11.5 |
13.9 |
0.386 |
|
|
70 |
320/0.51 |
1.4 |
13.2 |
16 |
0.272 |
|
|
95 |
423/0.51 |
1.6 |
15.1 |
18.2 |
0.206 |
|
|
120 |
541/0.51 |
1.6 |
16.7 |
20.2 |
0.161 |
|
|
150 |
675/0.51 |
1.8 |
18.6 |
22.5 |
0.129 |
|
|
185 |
822/0.51 |
2 |
20.6 |
24.9 |
0.106 |
|
|
240 |
1088/0.51 |
2.2 |
23.5 |
28.4 |
0.0801 |
|
|
Cineál |
Seoltóir |
Seoltóir Inslithe |
Tréithe Leictreach |
|||
|
Ceantar Ainmniúil |
Struchtúr an Seoltóra |
Tiús Insliú |
Trastomhas Foriomlán |
Friotaíocht Seoltóra ag 20 ℃ Max |
||
|
(mm) |
||||||
|
mm |
Uimh./mm |
mm |
Min |
uas |
Ω／km |
|
|
BVR |
2.5 |
19/0.40 |
0.8 |
- |
4.1 |
7.41 |
|
4 |
19/0.51 |
0.8 |
- |
4.8 |
4.61 |
|
|
6 |
19/0.63 |
0.8 |
- |
5.3 |
3.08 |
|
|
10 |
49/0.51 |
1.0 |
- |
7.3 |
1.83 |
|
|
16 |
49/0.63 |
1.0 |
- |
8.6 |
1.15 |
|
|
25 |
117/0.51 |
1.2 |
- |
10.2 |
0.727 |
|
|
35 |
163/0.51 |
1.2 |
- |
11.7 |
0.524 |
|
|
50 |
147/0.63 |
1.4 |
- |
13.9 |
0.387 |
|
|
70 |
209/0.63 |
1.4 |
- |
16 |
0.268 |
|
|
95 |
294/0.63 |
1.6 |
- |
18.2 |
0.193 |
|
|
120 |
369/0.63 |
1.6 |
- |
20.2 |
0.153 |
|
|
150 |
456/0.63 |
1.8 |
- |
22.5 |
0.124 |
|
|
185 |
570/0.63 |
2.0 |
- |
24.9 |
0.0991 |
|
450/750V: 60227 IEC 01 , 60227 IEC 01 （BV）, 60227 IEC 02, 60227 IEC 02（RV）, BVR
300/500V: 60227 IEC 05, 60227 IEC 05 （BV）, 60227 IEC 06, 60227 IEC 06（RV）
voltas tástála:
2500V: 60227 IEC 01 、 60227 IEC 01 (BV) , 60227 IEC 02 , 60227 IEC 02 (RV) , BVR
2000V: 60227 IEC 05, 60227 IEC 05 (BV) , 60227 IEC 06, 60227 IEC 06 (RV)
teocht oibriúcháin: -5 ° C go +70 ° C
ga lúbthachta:
12.5 × :60227 IEC 02 , 60227 IEC 02 , RV , 60227 IEC 06 , 60227 IEC 06 (RV) , BVR
15 × :60227 IEC 01 、 60227 IEC 01 (BV) , 60227 IEC 05, 60227 IEC 05 (BV)
teocht gearrchiorcaid: +160 ºC
Feidhmíocht lasair-retardant: tástáil leathadh lasair ingearach le haghaidh seoltóir aonair agus tástáil leathadh lasair ingearach le haghaidh seoltóirí nó cáblaí cuachta atá suiteáilte go hingearach (Aicme A, B, C, D), a chomhlíonfaidh caighdeáin IEC 60332, GB/T 19666, GB/T 18380 agus a chomhlíonann riachtanais an chustaiméara.
Feidhmíocht dóiteáin: 750 ° C ar feadh 90 nóiméad, de réir caighdeáin IEC 60331, GB / T 19666, GB / T 19216

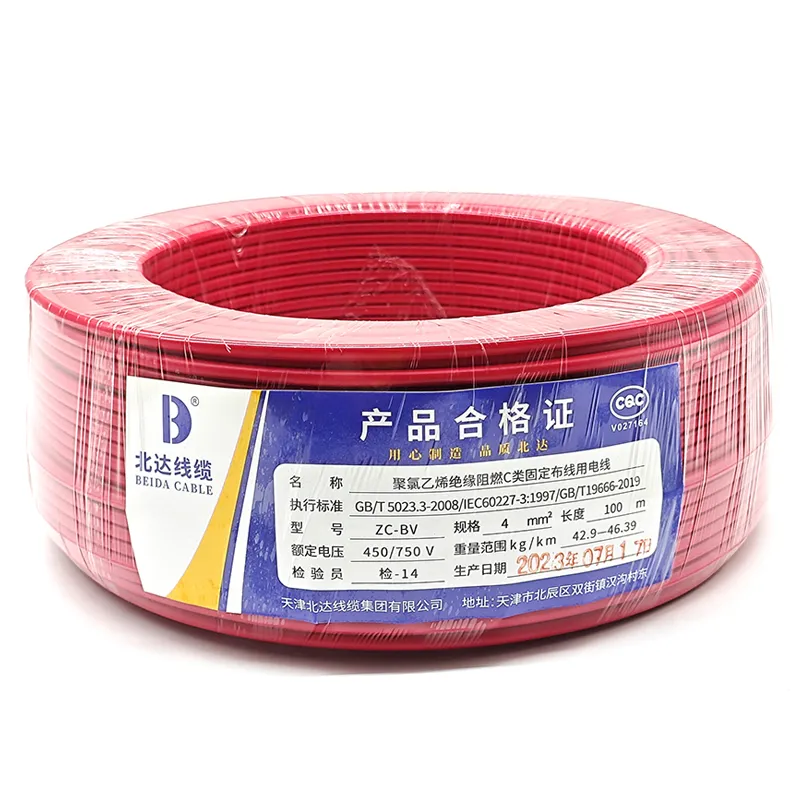

Sonraí Pacáiste
Tá cainníocht agus ceanglais shonracha suas fútsa cinneadh a dhéanamh, is féidir praghsanna a chaibidil.
Port: Tianjin Port Modh iompair: farraige, aer, sainráite.
